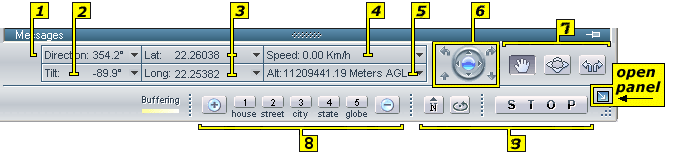

Back Flight Control Panel

Direction
Displays the direction angles of the plane.
To change the Plane direction, type the required direction (0 - 360 degrees) in the Direction digital display box.
Tilt
Displays the current Tilt of the camera in degrees.
To change the tilt value type the required tilt angle in the Tilt digital display box and press enter.
X and Y Fields
  The location control displays the location of the plane. It also allows you to jump to new locations in the 3D world by typing in new coordinates.
To jump to a new location in the 3D World:
1. Click on the X or Y fields.
2. Type the new location’s East-West and North-South values or use the up/down arrows to change the values. Make sure you type the new coordinates in the correct units.
3. Click on the OK button.
4 Speed

Speed is displayed in mph or km/h (use the Options dialog to set the required units).
To set the plane speed use one of the following methods:

  • Type in the required speed in the Speed digital display box and press enter. Make sure you type in the new speed in the units that appear above the digital display box.
  • To reduce the speed to zero press the Stop button.
Altitude
The Altitude control displays the altitude of the plane. It also allows you to change the altitude by typing in a new value or by using the zoom buttons. The altitude is limited to the maximum and minimum values as defined in the Flight Model setting.
To change the altitude:
Type in the required value in the Altitude digital display box and press enter. Make sure you type the new altitude in the units that appear below the digital display box.

Virtual Joystick
Use your mouse to shift the virtual joystick in the direction of your flight. Change the tilt angles of the camera and the direction of the plane by clicking the arrow buttons.

The Navigation Modes

Select one of the three navigation modes to move in the terrain.

Zoom Slider
  Click the zoom level buttons to zoom to a state, city or street view. You can also click the (+) sign or (-) sign to zoom in or out continuously.
  Navigational Aids

Click  north_btn to turn the plane to the North.
Click  rotate_btn to have the plane rotate left around the center of the 3D window .
Click  stop_bth to stop any movement
